Items			Unit	VU500	VU600-M	VU800
Standard controller				FANUC 0i—MF plus absolute type 0 15"LCD
Travel	X axis travel (work-table)		mm	860		900
	Y axis travel (saddle)		mm	800		1050
	Z axis travel (spindle head)		mm	500	450	700
Work table	Table diameter		mm	φ500	φ630	φ800
	Workpiece max.diameter		mm	φ630	φ800	φ1000
	Rotation angle	A axis		+90° ~ -120°		+120° ~ -120°
		C axis		360°
	Max.speed	A axis	rpm	22.2	12.5	50
		C axis	rpm	22.2	16.7	100
Spindle	Spindle taper			HSK-A63
	Max. spindle speed		rpm	15000（Direct dirven）
	Spindle motor power（continual working/Max.）		kW	15/38
	Spindle torque（continual working/Max.）		N.m	70/149
Accuracy	VDI/DGQ3441	Full travel positioning accuracy	mm	P0.006		P0.008
		Repeatability accuracy	mm	Ps0.004		Ps0.006
Machine size (length/width/height)			mm	4220x4150x3415		5790x4320x4250
Machine weight			kg	12500	13500	22000

We reserve the right to change technical parameters for improvement of our products without giving notice to customers.

Standard&Option	VU500M	VU600M	VU800M
FANUC 0i-MF plus 15" cradle five-axis, absolute type 0 system	●	●	●
Max.1500 blocks pre-read	●	●	●
iHMI+Manual Guide i+Data Server 2G	●	●	●
Tool center point control TCP + Dividing instruction for inclined working plane	●	●	●
Direct driven spindle 15000rpm HSKA63	●	●	●
Direct driven spindle 15000rpm BBT40	○	○	○
Electric spindle 20000rpm HSK A63	○	○	x
Electric spindle 24000rpm HSK A63	○	○	○
Electric spindle 36000rpm HSK E50	○	○	○
Drum type servo ATC HSKA63 20T	●	●	x
Chain type ATC HSKA63 32T	○	○	●
Chain type ATC HSKA63 40T/60T	○	○	○
Rigid tapping	●	●	●
Full-enclosed splash guard	●	●	●
Spindle chiller	●	●	●
Spindle air sealing	●	●	●
Air blowing device	●	●	●
Coolant surrounding spindle	●	●	●
Working area light	●	●	●
3 colors warning light	●	●	●
A/C for electric cabinet	●	●	●
Portable MPG	●	●	●
Grease lubrication device	●	●	●
Coolant system	●	●	●
Pneumatic system	●	●	●
Chain chip conveyor	●	●	●
Coil chip conveyor	●	●	●
Air gun	●	●	●
Water gun with flushing function	●	●	●
Oil skimmer(Japan)	●	●	●
Automatically power off	●	●	●
Transformer	●	●	x
Tool kit	●	●	●
Adjustable level bolts and foundation blocks	●	●	●
Safety door interlock	●	●	●
Operation manual	●	●	●
Oil-way reservation in middle of worktable (two in and two out)	○	○	○
Roof spraying system	○	○	○
Mass flow chip flushing function	○	○	○
Drawer type water tank	○	○	○
Buzzer alarm lamp	○	○	○
Air dryer	○	○	○
Oil mist collection machine	○	○	○
Coolant through spindle center 20/30/50/70bar	○	○	○
Voltage stabilizer	○	○	○
Intelligent spindle thermal compensation (FANUC)	●	●	●
Automatic accuracy compensation by reference ball	○	○	○
Collision avoidance device	○	○	○
Measuring system (tool, workpiece)	○	○	○
3 axis absolute linear scale(FAGOR)	●	●	●
A/C axis absolute grating scale (FAGOR)	●	●	●
Water tankwith level detection	●	●	●
Full enclosed iron box package	○	○	○
Warranty prolong 1 year	○	○	○

●

Standard

○

Optional

x

Not available

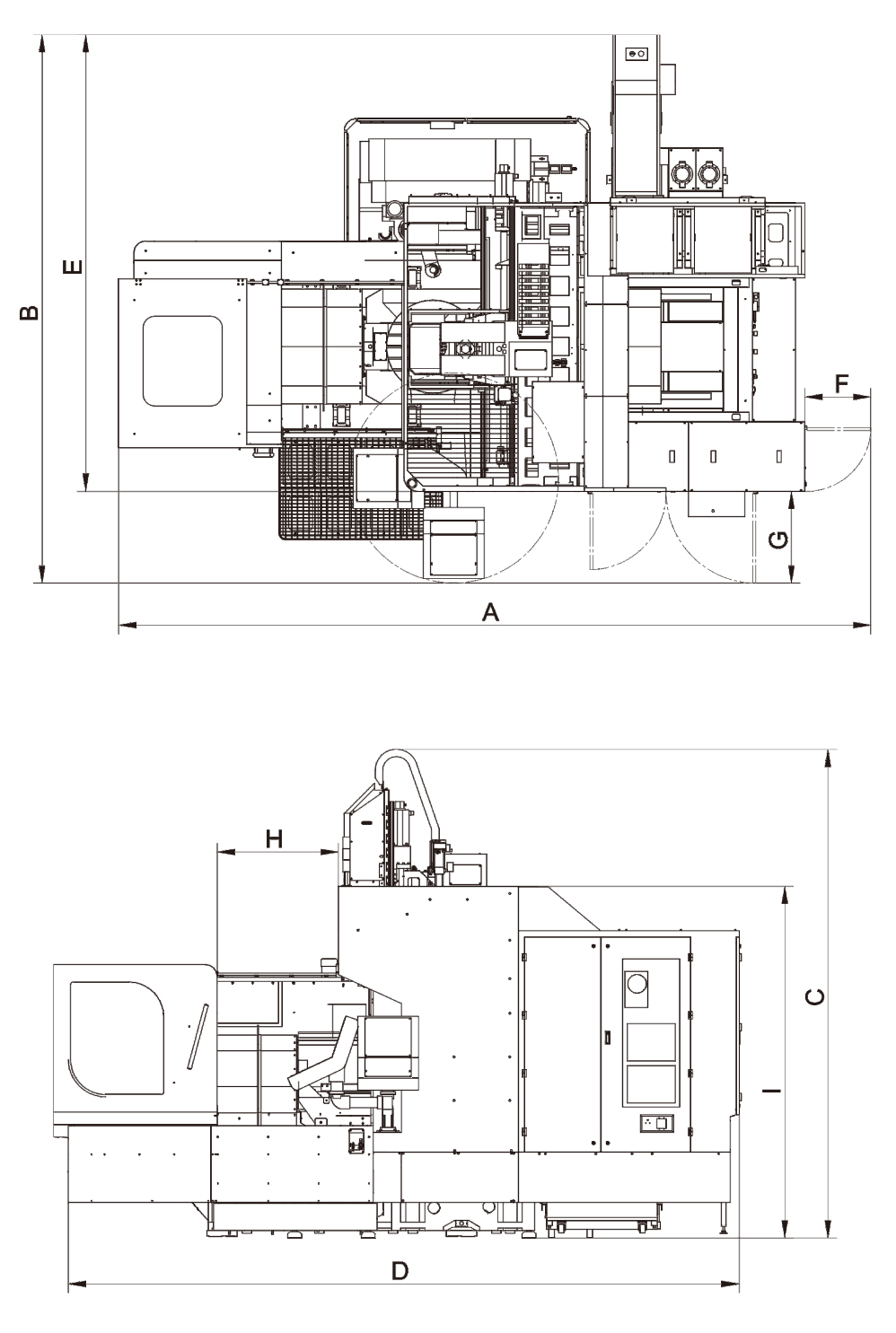

	A	B	C	D	E	F	G	H	I
VU500M	4810	4780	3415	4220	4150	870	840	1260	2470
VU600M	4810	4780	3415	4220	4150	870	840	1260	2470
VU800M	6470	4790	4250	5790	4320	570	790	1050	2960

成人亚洲一区二区三区在线,欧美日韩精品一区二区,亚洲av无码成人精品区,欧洲熟妇色xxxx欧美老妇老头多毛

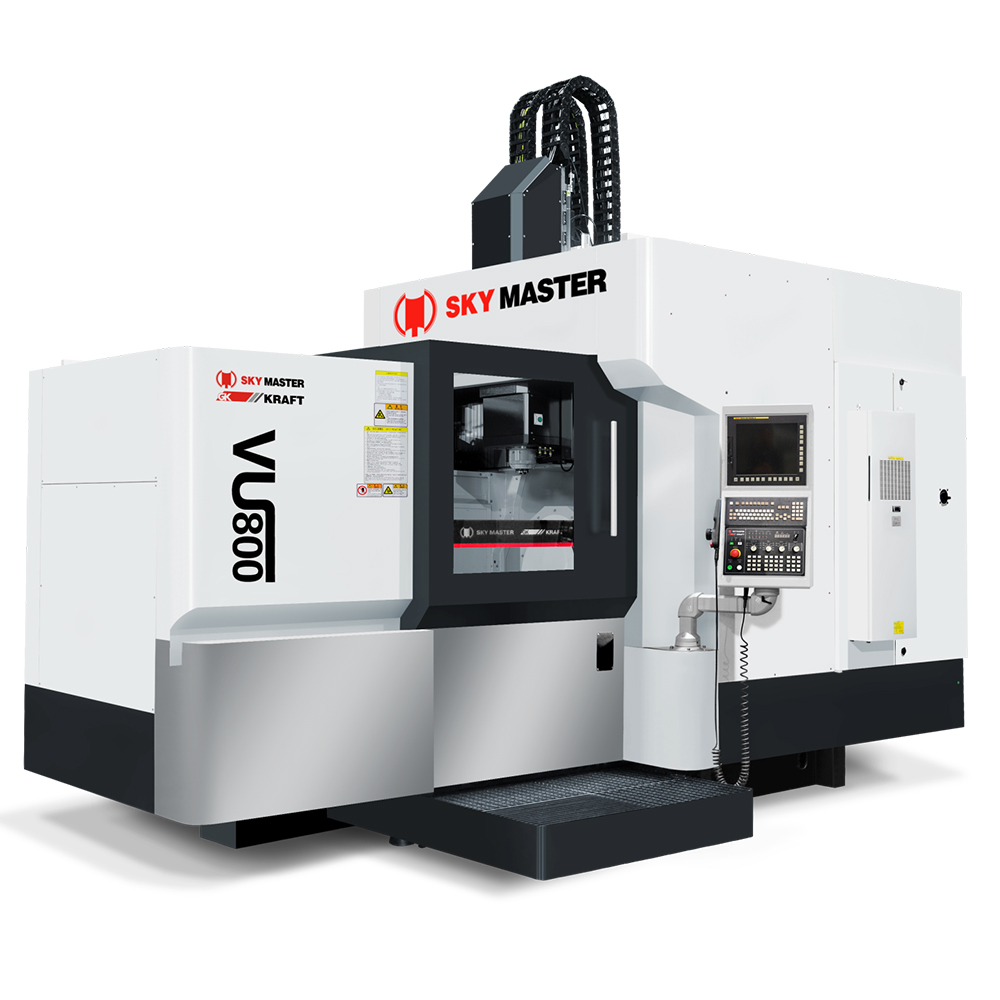

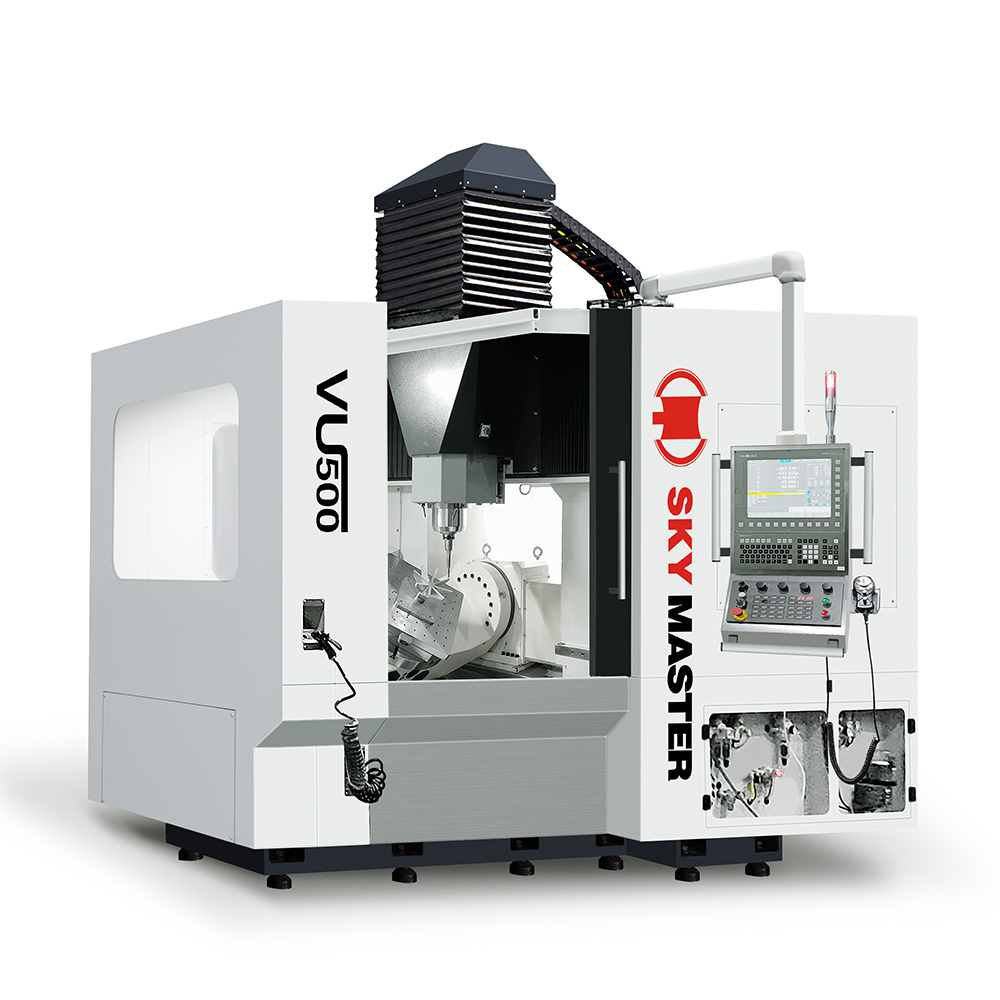

VU500M/600M/800M
